Turnstile T-Y03 Face recognition access gate
Awakentec The product is a channel swing gate, which is made of 304 stainless steel. It is identified by QR code and IC/ID to achieve the effect of opening and closing the door. Suitable for shopping malls, hotels, cinemas, government agencies, CBD, and other public access places. And support customization!
Description

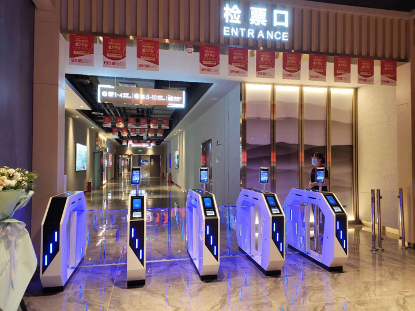

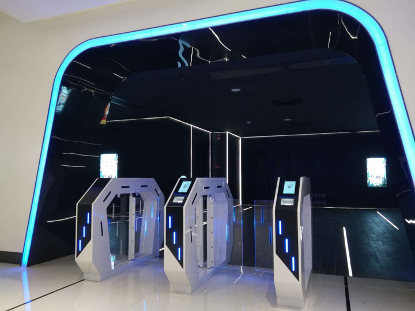

Product Case
Product functions and features
7 major features:
1. Manual emergency: In case of accidental power failure or failure, the gate can be automatically or manually switched on and off, and it can be temporarily changed to manual ticket checking. The gate has the function of automatic opening after power failure, and the function of manual closing.
2 . Fire emergency alarm: When encountering a fire alarm signal, or a mall fire alarm signal, the gate will automatically alarm and open. Quickly clear the flow of people.
3. Voice and screen prompts: According to the QR code information of the movie ticket, the display screen will prompt the QR code data: valid tickets or invalid tickets. Or before the check-in time, voice broadcast information at the same time to remind customers.
4. Intelligent anti-pinch: up to 16 infrared probes, to judge the customer's entry and exit at any time, intelligent induction, to prevent pinch and tailing.
5. Strong scalability: optional membership card reading function, and face recognition function. Improve customer experience.
6. Professional servo motor, with resistance return and advanced anti-collision function. Long life and stable function.
7. Automatic switch machine: The theater sets the automatic switch machine time. Modules are required.
Product parameters
Chassis design: It adopts ergonomic design, the shape design is novel, generous and beautiful, reflecting the humanized design; the box body is based on the standardized design, fully computer numerical control laser cutting production, opening, one-time production.
Type technology, mechanized wire drawing process, modular docking, easy loading and unloading maintenance, high interchangeability.
Chassis material: 304# high-brightness stainless steel/frame structure.
Swing door/side panel material: high-grade acrylic material (screen printing optional).

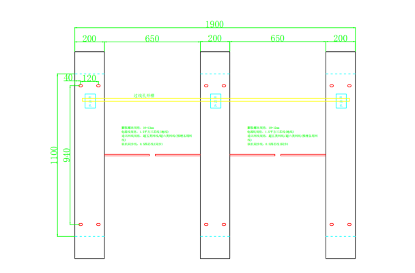

Channel width: 600mm.
Net weight of gates: 70kg/set for single machine, 80kg/set for double machine.
Swing door transmission angle: two-way ±90° swing.
Access mode: one-way or two-way.
Power input: AC±220V±10%, 50HZ.
Power output: power supply module DC5V, 12V, 24V.
Drive mode: DC servo geared motor drive.
Power per unit: Standby power 50W, full load power 160W.
Service life: more than 5 million times of continuous rotation.
Signal source input interface: dry contact number; TCP/IP communication interface; 2 punch-in signals (passive); TTL level signal; 1 fire signal port.
Opening speed: 0.5-60 seconds.
Response time: < 0.2 seconds.
Traffic speed: 30-40 people/min.
Working environment: indoor, outdoor (shade).
Temperature: -30℃--60℃.
Relative humidity: ≦90%, no condensation.
Gate composition: box body; movement; rack; drive board; infrared radiation; servo motor; power module
