Intelligent terminal for gate recognition and verification

Application scenarios:

It can be matched with channel gates and is suitable for office buildings, movie theaters, scenic spots, stations, airports, etc.

When the customer walks to the gate, the verification terminal will automatically work to scan the customer's correct information.

If it is in an office building, the verification opportunity will verify whether the visitor is registered in advance. If the verification is correct, the equipment controls the gate to open the gate and the visitor enters.

If it is in a movie theater, the audience needs to show the movie ticket that is valid on the day, pick up the ticket and place it on the QR code scanning module for scanning and verification. If it is a movie ticket that is valid on the day, the verification machine will open the door for the audience to travel with.

If it is in a scenic amusement park, the guest places a valid bill on the verification machine for scanning, which can be a QR code of the bill. It can be IC, ID card. It can be a face ID. The verification terminal will open the door after verification is completed.

If it is at a station or airport, the verification opportunity will verify the valid identity of the passenger and the valid ticket, and compare the identity information and the ticket through the QR code, IC, and ID. It must be possible to compare the data through face recognition. Identity If the information is correct, you can travel together. If the person is a national wanted person, a fugitive, or a dangerous person. The verification opportunity issues an alarm in the background in time. This allows security personnel to keep abreast of safety information at all times.

Product Introduction:

The face recognition verification intelligent terminal adopts Rockchip RK3288 processor, is equipped with industrial-grade binocular camera and face live recognition technology. It is a high-performance and high-reliability product. Support 1:1 and 1:N face comparison and retrieval, support multiple optional functions such as IC contactless card/second-generation card, QR code/fingerprint, etc., which can be applied to gate channels, access control and attendance, visitor registration, Realize the safe and efficient access control of personnel.

Features

● Adopt 8-inch IPS full-view LCD display

● Industrial-grade appearance, waterproof and dust-proof design, stable and reliable

● Support 3W face library. The recognition rate of 1:1 comparison is more than 99.7%, the recognition rate of 1:N comparison is more than 96.7%@0.1% false recognition rate, and the accuracy rate of live detection is 98.3%@1% false rejection rate. Face recognition pass speed is less than 1 second

● Adopt industrial grade binocular wide dynamic camera, night infrared, LED double fill light

● Adopt HiSilicon RK3288 quad-core processor with strong performance

● Support multiple peripheral expansions such as ID card reader, fingerprint reader, IC card reader, QR code reader, etc.

● Support system level, APP offline level, APP + background network level multiple API docking, complete documentation, support secondary development

Product parameter

Product number	Product Image	Describe
HT-S200		★Face recognition smart terminal
Hardware Configuration	The main parameters	A detailed description
	Main control (built-in)	CPU: RK3288, quad-core, main frequency: 1.8G Memory: 2G Storage: 8G (expandable to 64G) Support 3G/4G Support WIFI, Bluetooth Support voice
	Touch screen (built-in)	Screen size: 8 inches The best resolution: 800*1280 60HZ Screen aspect ratio: 16:9 Contrast ratio: 500:1 Response time (milliseconds): 5 Viewing angle: 170°/160°(H/V) Touch screen: capacitive, support multi-touch, I2C interface, drive-free
	Second-generation ID card reader (built-in)	Card reading type: ID card (second-generation/third-generation card), IC card; card reading distance: 0-5cm; Reading speed: ID card reading speed <=1 second, card reading time <1.5 seconds
	Sensor	Infrared or thermal imaging detection sensor, temperature error plus or minus 0.3°
	Binocular wide dynamic camera	Pixel: 2 million color camera 2 million black and white camera Shooting distance: less than 1m Frame rate: MGPG: 30fs YUY: 15fps The highest resolution: 1280*960 Photosensitive element: COMS Working voltage: USB 5V Working current: 160-220mA Lens color: 3.6MM 650 filter Black and white: 3.6MM 850 filter LED fill light: 850nm 60°, infrared LED
	Fingerprint device	Optical Resolution: 256*360 Ministry of Public Security Certified Fingerprint Apparatus Interface: USB
	QR code	Working mode: lens sensor Communication interface: RS232/USB Reading accuracy: 10mil Light source: White LED Code system: 2D, PDF417, Data Matrix, QR Code
	External expansion IO interface	2*USB 2.0, 1*RJ11, 1 input and 1 output GPIO, 1*Lan, 1*DC
	System	Andriod5.1
	Other	Power supply: DC 12V adapter, output current 2A Protection level: IP65 Working temperature: ﹣10℃~60℃ Storage temperature: -20℃~60℃ Product size: 314*130*225MM (length * width * height) Weight: 2kg Packing: carton + Poly Dragon
	Software	1. Face recognition: support the accurate recognition of faces in the system, and linkage access control to open the door; 2. Mask detection: Support mask detection and face recognition when wearing a mask; 3. Blacklist deployment control: support the definition of blacklist users in the system and alarm; 4. Personal ID verification: support non-system personnel, and compare the ID card with the face; 5. Recognition distance: Support face recognition distance can be adjusted, the adjustment range is 30cm-150cm; 6. Temperature measurement function: support temperature measurement distance less than 0.5 meters; temperature measurement accuracy is less than 0.5 ℃; 7. Wechat push: support incoming and outgoing information, real-time push to Wechat end; 8. Support languages: Chinese, English, Japanese;

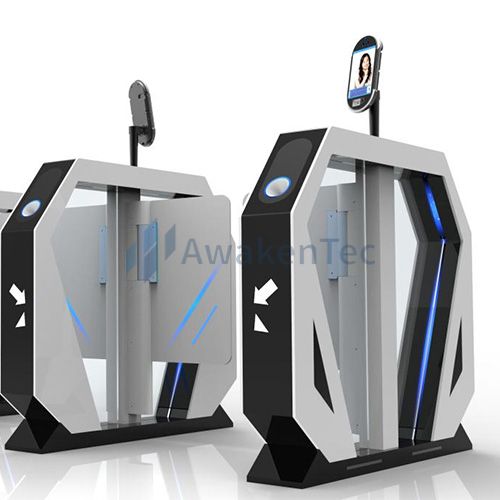

Verification Terminal (Effect Picture)

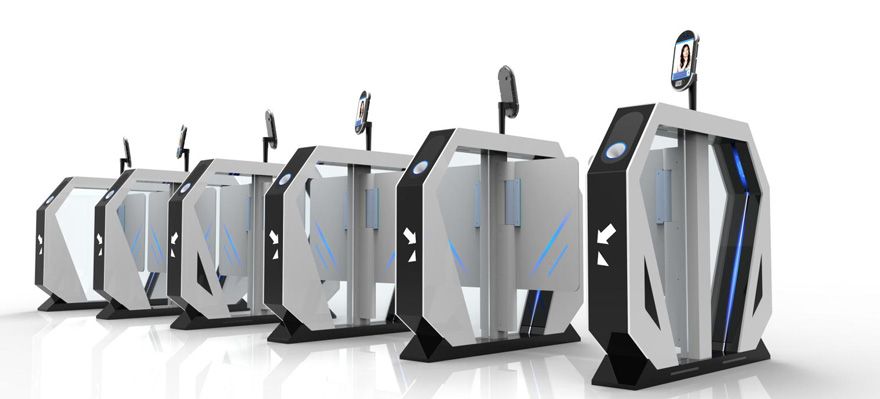

Turn gate plus verification terminal (effect drawing)

Wire interface definition

1. USB interface

2. RS485 interface (black)

3. Wiegand output interface (white)

4. Ethernet interface

5. DC12V power supply

6. Breaker output interface (red)

7. Switch input interface (yellow)

The interface of each terminal is defined as follows:

■ RS485

■ Wiegand output

■ Relay output

■ Switch input
