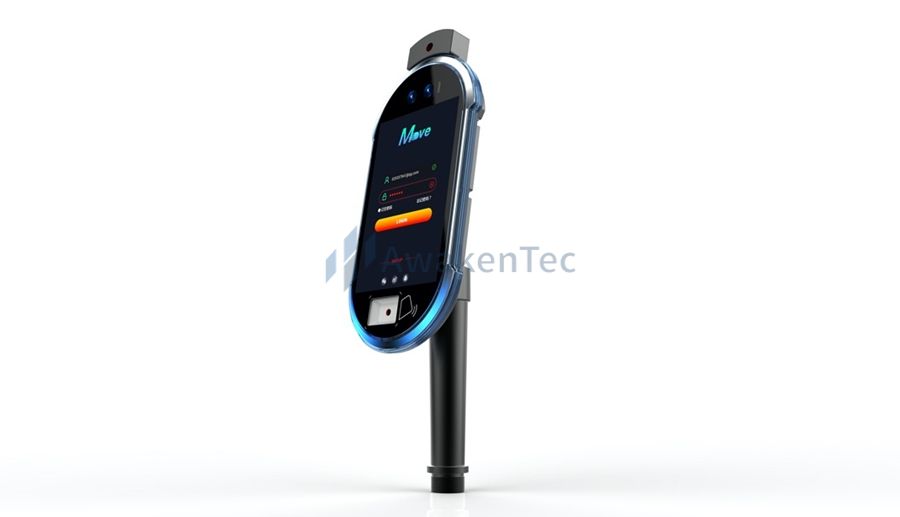

Face recognition verification smart terminal renderings

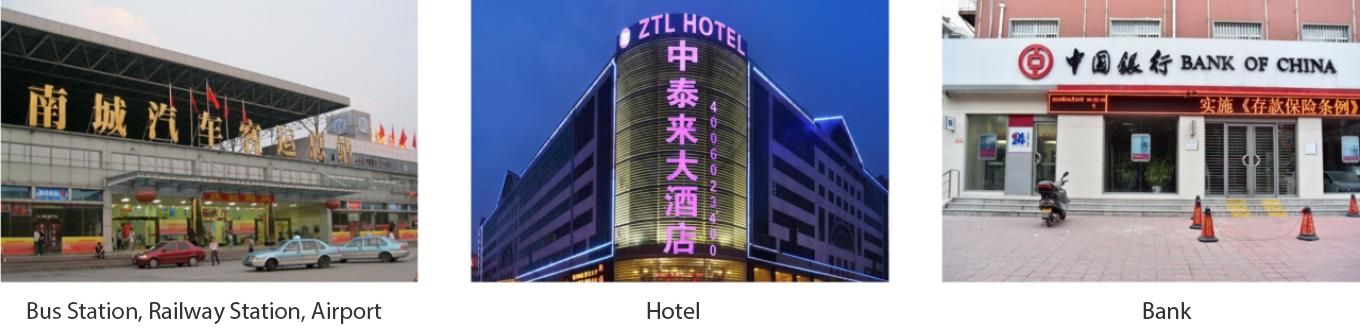

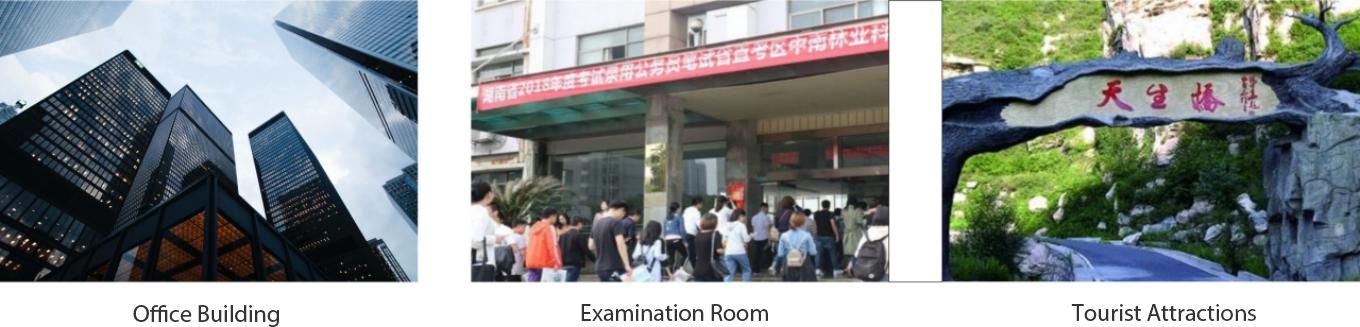

Application scenarios:

It can be equipped with advanced temperature measurement modules, suitable for office buildings, examination institutes, scenic spots, stations, hotels, banks and other public service places.

Due to the repeated epidemics, we have added a temperature measurement module to the verification machine. Just place the verification machine in various public places, and the verification machine will work by itself.

When someone walks through the verification machine, the verification machine will detect the body temperature of the person who passed the verification machine. When the passing crowd does not wear a mask, the verification machine will also issue a voice command asking people to wear the mask accurately. When the mask is worn, the verification machine activates the temperature measurement module for body temperature detection.

The verification machine is connected to the Internet. Every day's test data can be searched through the Internet, and every day's records can be found. Through the cloud storage solution, the long-term information can still be checked and verified.

Let you have a firm grasp of every piece of data, and effectively control the epidemic problem of incoming and outgoing personnel.

After the verification machine adds the support, it can carry out the detection and early warning broadcast by itself, which can save the cost of personnel on duty.

It is a good helper for manpower shortage.

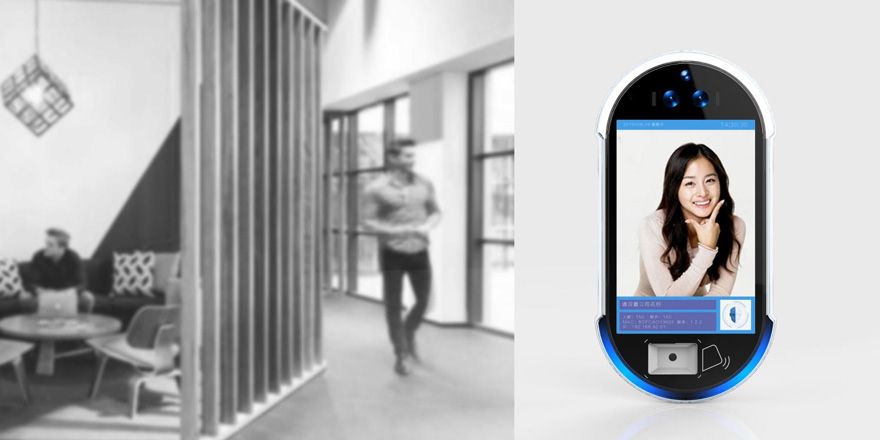

The face recognition intelligent terminal adopts Rockchip RK3288 processor, equipped with industrial-grade binocular camera and face recognition technology. It is a high-performance, high-reliability product. Support 1:1 and 1:N face comparison and retrieval, support multiple optional functions such as IC contactless card/second-generation card, QR code/fingerprint, etc., which can be applied to gate channels, access control attendance, visitor registration, Realize the safe and efficient access control of personnel.

Features

● Adopt 8-inch IPS full-view LCD display

● Industrial-grade appearance, waterproof and dust-proof design, stable and reliable

● Support 3W face library. The recognition rate of 1:1 comparison is more than 99.7%, the recognition rate of 1:N comparison is more than 96.7%@0.1% false recognition rate, and the accuracy rate of live detection is 98.3%@1% false rejection rate. Face recognition pass speed is less than 1 second

● Adopt industrial grade binocular wide dynamic camera, night infrared, LED double fill light

● Adopt HiSilicon RK3288 quad-core processor with strong performance

● Support multiple peripheral expansions such as ID card reader, fingerprint reader, IC card reader, QR code reader, etc.

● Support system level, APP offline level, APP + background network level multiple API docking, complete documentation, support secondary development

Product parameter

Product number	Product Image	Describe
HT-S200		★Face recognition smart terminal
Hardware Configuration	The main parameters	A detailed description
	Main control (built-in)	CPU: RK3288, quad-core, main frequency: 1.8G Memory: 2G Storage: 8G (expandable to 64G) Support 3G/4G Support WIFI, Bluetooth Support voice
	Touch screen (built-in)	Screen size: 8 inches The best resolution: 800*1280 60HZ Screen aspect ratio: 16:9 Contrast ratio: 500:1 Response time (milliseconds): 5 Viewing angle: 170°/160°(H/V) Touch screen: capacitive, support multi-touch, I2C interface, drive-free
	Second-generation ID card reader (built-in)	Card reading type: ID card (second-generation/third-generation card), IC card; card reading distance: 0-5cm; Reading speed: ID card reading speed <=1 second, card reading time <1.5 seconds
	Sensor	Infrared or thermal imaging detection sensor, temperature error plus or minus 0.3°
	Binocular wide dynamic camera	Pixel: 2 million color camera 2 million black and white camera Shooting distance: less than 1m Frame rate: MGPG: 30fs YUY: 15fps The highest resolution: 1280*960 Photosensitive element: COMS Working voltage: USB 5V Working current: 160-220mA Lens color: 3.6MM 650 filter Black and white: 3.6MM 850 filter LED fill light: 850nm 60°, infrared LED
	Fingerprint device	Optical Resolution: 256*360 Ministry of Public Security Certified Fingerprint Apparatus Interface: USB
	QR code	Working mode: lens sensor Communication interface: RS232/USB Reading accuracy: 10mil Light source: White LED Code system: 2D, PDF417, Data Matrix, QR Code
	External expansion IO interface	2*USB 2.0, 1*RJ11, 1 input and 1 output GPIO, 1*Lan, 1*DC
	System	Andriod5.1
	Other	Power supply: DC 12V adapter, output current 2A Protection level: IP65 Working temperature: ﹣10℃~60℃ Storage temperature: -20℃~60℃ Product size: 314*130*225MM (length * width * height) Weight: 2kg Packing: carton + Poly Dragon
	Software	1. Face recognition: support the accurate recognition of faces in the system, and linkage access control to open the door; 2. Mask detection: Support mask detection and face recognition when wearing a mask; 3. Blacklist deployment control: support the definition of blacklist users in the system and alarm; 4. Personal ID verification: support non-system personnel, and compare the ID card with the face; 5. Recognition distance: Support face recognition distance can be adjusted, the adjustment range is 30cm-150cm; 6. Temperature measurement function: support temperature measurement distance less than 0.5 meters; temperature measurement accuracy is less than 0.5 ℃; 7. Wechat push: support incoming and outgoing information, real-time push to Wechat end; 8. Support languages: Chinese, English, Japanese;

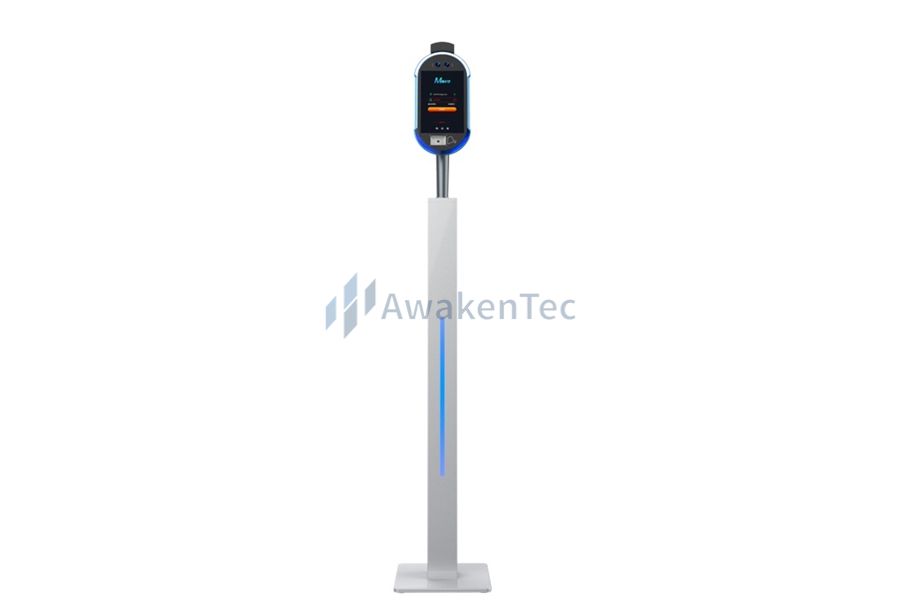

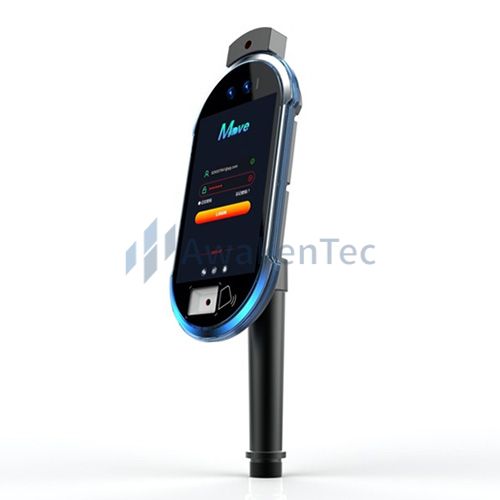

Verification Terminal (Effect Picture)

Face recognition verification smart terminal, configuration of human body temperature detector, high-speed two-dimensional code module (results)

Wire interface definition

1. USB interface

2. RS485 interface (black)

3. Wiegand output interface (white)

4. Ethernet interface

5. DC12V power supply

6. Breaker output interface (red)

7. Switch input interface (yellow)

The interface of each terminal is defined as follows:

■ RS485

■ Wiegand output

■ Relay output

■ Switch input
