Face recognition verification smart terminal equipped with human body temperature sensing module
Due to the repeated epidemics, we have added a temperature measurement module to the verification machine. Just place the verification machine in various public places, and the verification machine will work by itself.
Description
Application scenario
Due to the repeated epidemics, we have added a temperature measurement module to the verification machine. Just place the verification machine in various public places, and the verification machine will work by itself.
When someone walks through the verification machine, the verification machine will detect the body temperature of the person who passed the verification machine. When the passing crowd does not wear a mask, the verification machine will also issue a voice command asking people to wear the mask accurately. When the mask is worn, the verification machine activates the temperature measurement module for body temperature detection. At the same time, the hand can be disinfected through the automatic hand sprayer carried by itself
The verification machine is connected to the Internet. Every day's test data can be searched through the Internet, and every day's records can be found. Through the cloud storage solution, the long-term information can still be checked and verified.
Let you have a firm grasp of every piece of data, and effectively control the epidemic problem of incoming and outgoing personnel.
After the verification machine adds the support, it can carry out the detection and early warning broadcast by itself, which can save the cost of personnel on duty.
It is a good helper for manpower shortage.

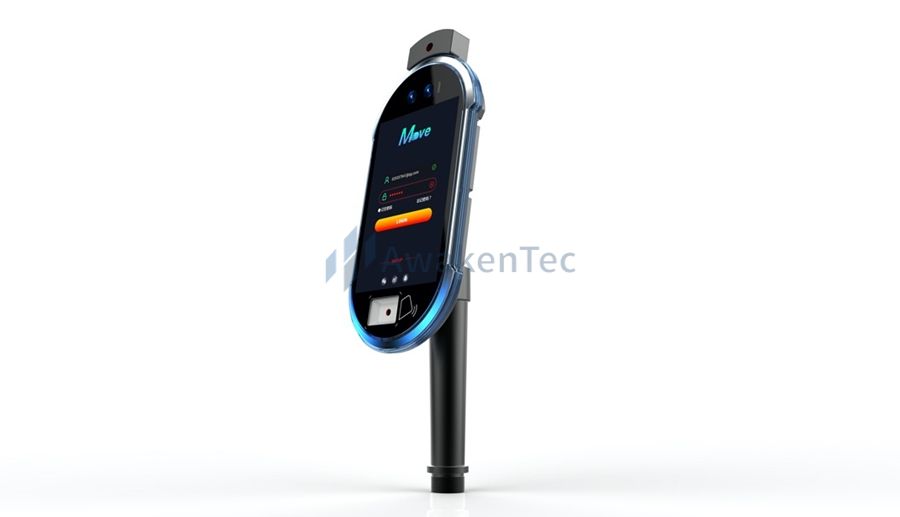

Face recognition verification smart terminal equipped with human body temperature sensing module (results)

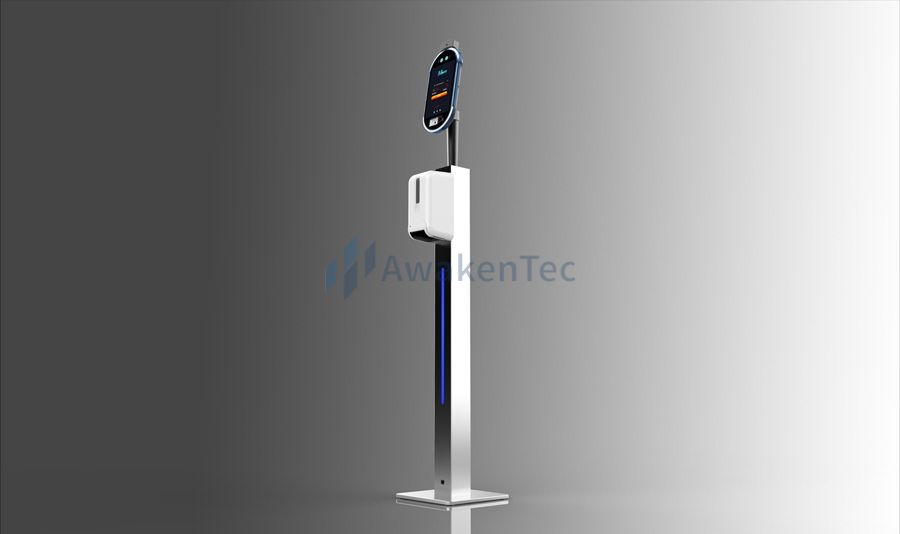

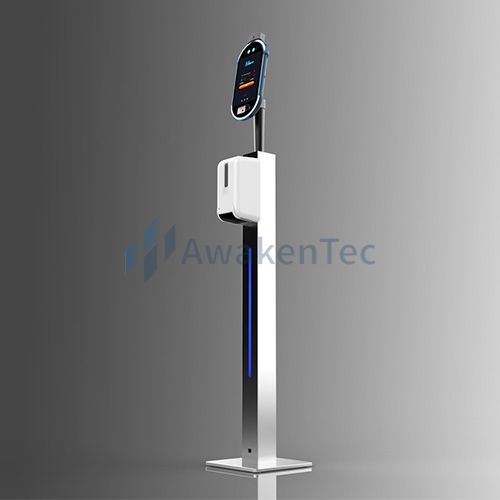

Face recognition verification intelligent terminal configuration: human body temperature measurement sensor module, induction disinfection foam machine, aluminum alloy square tube column (effect picture)
Wire interface definition
1. USB interface
2. RS485 interface (black)
3. Wiegand output interface (white)
4. Ethernet interface
5. DC12V power supply
6. Breaker output interface (red)
7. Switch input interface (yellow)
The interface of each terminal is defined as follows:
■ RS485
Terminal electrical definition | |
Pin1 | RS485-A |
Pin2 | RS485-B |
Pin3 | GND |
■ Wiegand output
Terminal electrical definition | |
Pin1 | WG-D0 |
Pin2 | WG-D1 |
Pin3 | GND |
■ Relay output
Terminal electrical definition | |
Pin1 | RELAY-NO |
Pin2 | RELAY-COM |
Pin3 | RELAY-NC |
■ Switch input
Terminal electrical definition | |
Pin1 | DIGITAL-IN1 |
Pin2 | DIGITAL-IN2 |
Pin3 | GND |
